ITI Engineering Drawing 1st Year CBT Exam Practice Paper 5

ITI Exam की बेहतर तैयारी के लिये इंजीनियरिंग ड्राइंग ट्रेड का ITI Engineering Drawing 1st Year CBT Exam Practice Paper तैयार किया गया है जिसमे आपको 25 प्रश्‍न दिए जायेंगे और ITI Engineering Drawing 1st Year CBT Exam Practice Paper New NIMI Pattern पर आधारित है। ITI Engineering Drawing 1st Year CBT Exam Practice Paper मे जो प्रश्‍न दिये गये है वह हिंदी और अंग्रेजी दोनो भाषाओ में है।

ITI Engineering Drawing Trade के महत्वपूर्ण प्रश्नो का ITI Engineering Drawing 1st Year CBT Exam Practice Paper देने के लिये नीचे दिये गये ITI Engineering Drawing 1st Year CBT Exam Practice Paper पर क्लिक करें। उसके बाद Start Quiz पर क्लिक करें।

Start quiz

Q1. Identify the name of tool?

(A) Ball pein hammer

(B) Straight pein hammer

(C) Cross pein hammer

(D) Sledge hammer

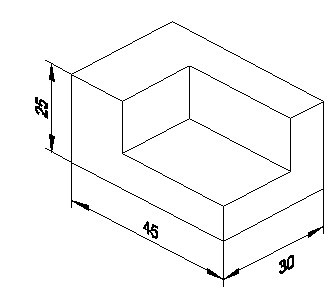

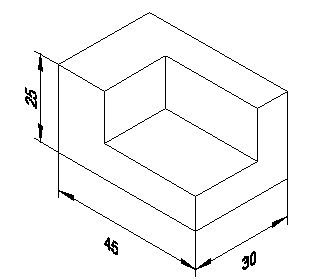

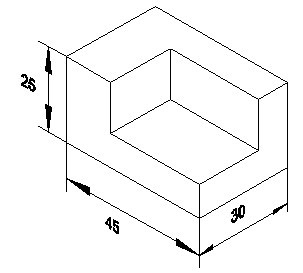

Q2. Which drawing dimension is correct as per standard drawing practice?

(A)

(B)

(C)

(D)

Q3. Identify the conventional symbol of material?

(A) Concrete

(B) Steel

(C) Wood

(D) Glass

Q4. What is the trimmed size of A4 sheet?

(A) 148 x 210

(B) 594 x 841

(C) 210 x 297

(D) 841 x 1189

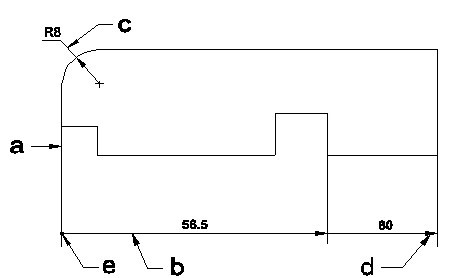

Q5, Identify the line ʹbʹ?

(A) Dimension line

(B) Extension line

(C) Leader line

(D) Termination of dimension line

Q6, Compass used to draw for___.

(A) rectangle

(B) square

(C) circle

(D) triangle

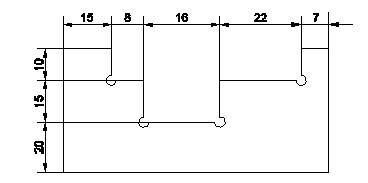

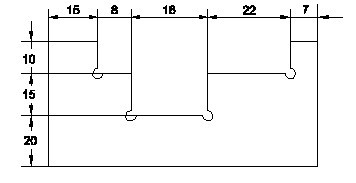

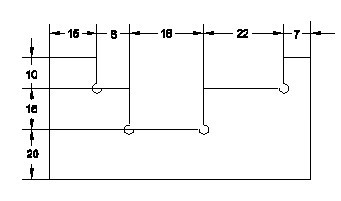

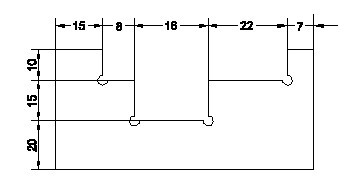

Q7. Identify the correct aligned system dimension?

(A)

(B)

(C)

(D)

Q8.Identify the name of tool?

(A) Ball pein hammer

(B) Mallet

(C) Cross pein hammer

(D) Straight pein hammer

Q9.Identify the conventional symbol of material?

(A) Steel

(B) Wood

(C) Glass

(D) Concrete

Q10.Which dimension correctly marked in the circle as per standard?

(A)

(B)

(C)

(D)

Q11.Identify the name of prism?

(A) Rectangle prism

(B) Square prism

(C) Triangular prism

(D) Hexagonal prism

Q12,.Identify the conventional symbol of material?

(A) Water

(B) Concrete

(C) Asbestos

(D) Glass

Q13. Identify the name of set square?

(A) 15° set square

(B) 60° set square

(C) 30°set square

(D) 45°set square

Q14.Which single stroke inclined letter ʹAʹ is correct as per IS standard?

(A)

(B)

(C)

(D)

Q15. Identify the conventional symbol of material?

(A) Lead

(B) Glass

(C) Wood

(D) Paper

Q16. Identify the name of prism?

(A) Square prism

(B) Pentagonal prism

(C) Triangular prism

(D) Hexagonal prism

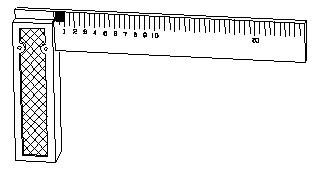

Q17. Identify the name of tool?

(A) Try square

(B) Surface gauge

(C) Steel rule

(D) Feeler gauge

Q18.Which drawing dimension is correct as per IS standard?

(A)

(B)

(C)

(D)

Q19.Identify the conventional symbol of material?

(A) Lead

(B) Steel

(C) Glass

(D) Porcelain

Q20.Identify the name of the triangle?

(A) Equilateral triangle

(B) Isosceles triangle

(C) Scalene triangle

(D) Right angle triangle
